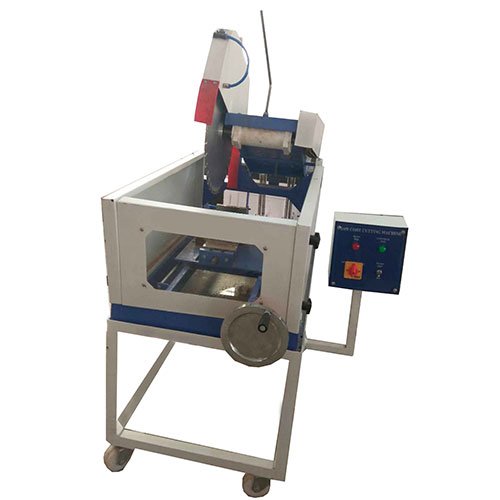

Core Cutting Grinding Machine

Model No.: TVELE-0175

Standards: EN 12350-5

Specification:

• Table Mounted
• Stable Construction Feed arrangement for cutting
• Feed arrangement for cutting
• Cooling water arrangement

This unit is designed for cutting and grinding cylindrical rock specimens upto NX size. The outfit includes 200mm dia diamond impregnated cutter, a fine diamond impregnated grinding wheel a water supply system and sampler holder.

A V-Vice, to hold the sample up to 55mm dia x 140mm long to be cut parallel and square to the longitudinal axis is provided. Cores longer that 140mm can be prepared by reversing the specimen and holding against the vice, A hand feed arrangement is provided to facilitate the specimen with a uniform and smooth feeding motions. This unit is provided with a 3 HP, Three Phase, 440 V A.C. Motor.
