Melting Pot

Model No.: TVELE-0067
Standards:

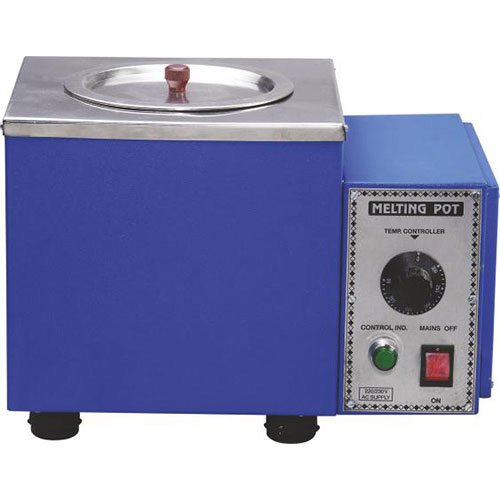

Specification: Used to melt Capping compound this pot comprises a metal container in a well lagged steel jacket. A thermostatic control and stand by heat switch are fitted. Supplied complete with lift off cover. Wa r m e r : A n e l e c t r i c a l l y h e a t e d a n d thermostatically controlled bath for melting the capping compound. Supplied with cover and handle. Suitable for operation on 230 Volts A.C. Single Phase.

Capping Compound: Used for capping the ends of concrete cylinders to be tested. Available in packs of 5 kg.

Bowl & Ladle: Metallic bowl is used to carry the capping compound and ladle is used to pout molten capping compound in to the groves between specimen and capping plate. Supplied as a set.

• Dimensions (Diameter x Depth) :140 x 150 mm (Internal), 250 x 165mm (External)
• Capacity : 2.4 litres
• Rated Power : 750 W
• Temperature : 40 to 340° C
