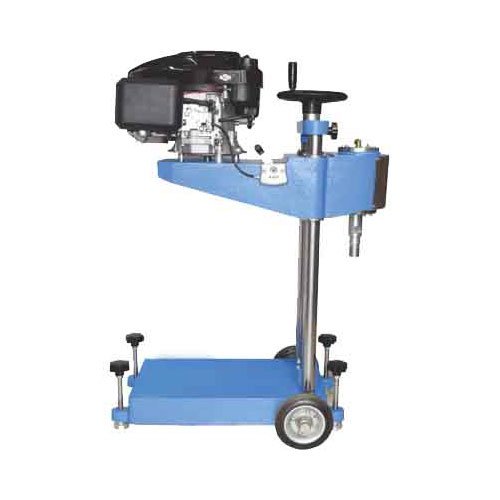

Portable Core Cutting Drilling Machine Petrol Driven

Model No.: TVELE-0173
Standards: EN 12697-27

Specification: Compact and portable core drilling machine is designed to cut cores up to 200 mm diameter from concrete, asphalt and similar hard construction materials. The machine comprises a vertical support column which carries the drill head/motor assembly. The motor assembly comprises a 6.5 hp petrol engine. A ball screw mechanism enables close control of the drilling pressure and rapid return when drilling is completed. A water spraying assembly is mounted on the machine. The complete assembly is supplied on a rigid wheel mounted metal base frame with leveling and fixing facility during the operation.

• Weight (approx) : 100 Kg
• Power : Petrol Engine 6.5 HP
